Mkl225 7.5kw Wooden Pellet Machine With100-200 Kg/H Capacity

Mkl225 7.5kw Wooden Pellet Machine With100-200 Kg/H Capacity

Product Application Our CE pellet machine are devided into the KL series pellet machine and the MKL series pellet machine. Our KL series pellet machine can press both for feed pellets and wood sawdust pellets, while the capacity of making wood sawdust is lower than feed pellets. Our MKL series...

The MKL series pellet machine is specially designed to make kinds of wood pellets.

Just contact me if you have any questions.

Product Application

Our CE pellet machine are devided into the KL series pellet machine and the MKL series pellet machine. Our KL series pellet machine can press both for feed pellets and wood sawdust pellets, while the capacity of making wood sawdust is lower than feed pellets. Our MKL series pellet machine have the special design for making wood sawdust pellets.

Our flat die pellet machine can be powered by electrical motor, diesel enginen, gasoline engine and tractor. MKL-D series pellet machine are driven by the diesel engine. MKL series pellet machine are driven by the electrical motor and the KL-P pellet machine are driven by tractor.

Model

Power

Voltage V/50Hz

Die Diameter

Die Hole Specification

Saw Dust Capacity

MKL225

7.5KW

380V

229mm

2.5-10mm

120-200 kg/h

MKL229

11KW

380V

229mm

2.5-10mm

180-250 kg/h

MKL295

15KW

380V

295mm

2.5-10mm

300-400 kg/h

MKL335

22KW

380V

335mm

2.5-10mm

400-500 kg/h

MKL395

30KW

380V

395mm

2.5-10mm

500-600 kg/h



Main Features

1) Compact structure

2) Convenient operation,high efficiency

3). Little power consumption and small occupation area

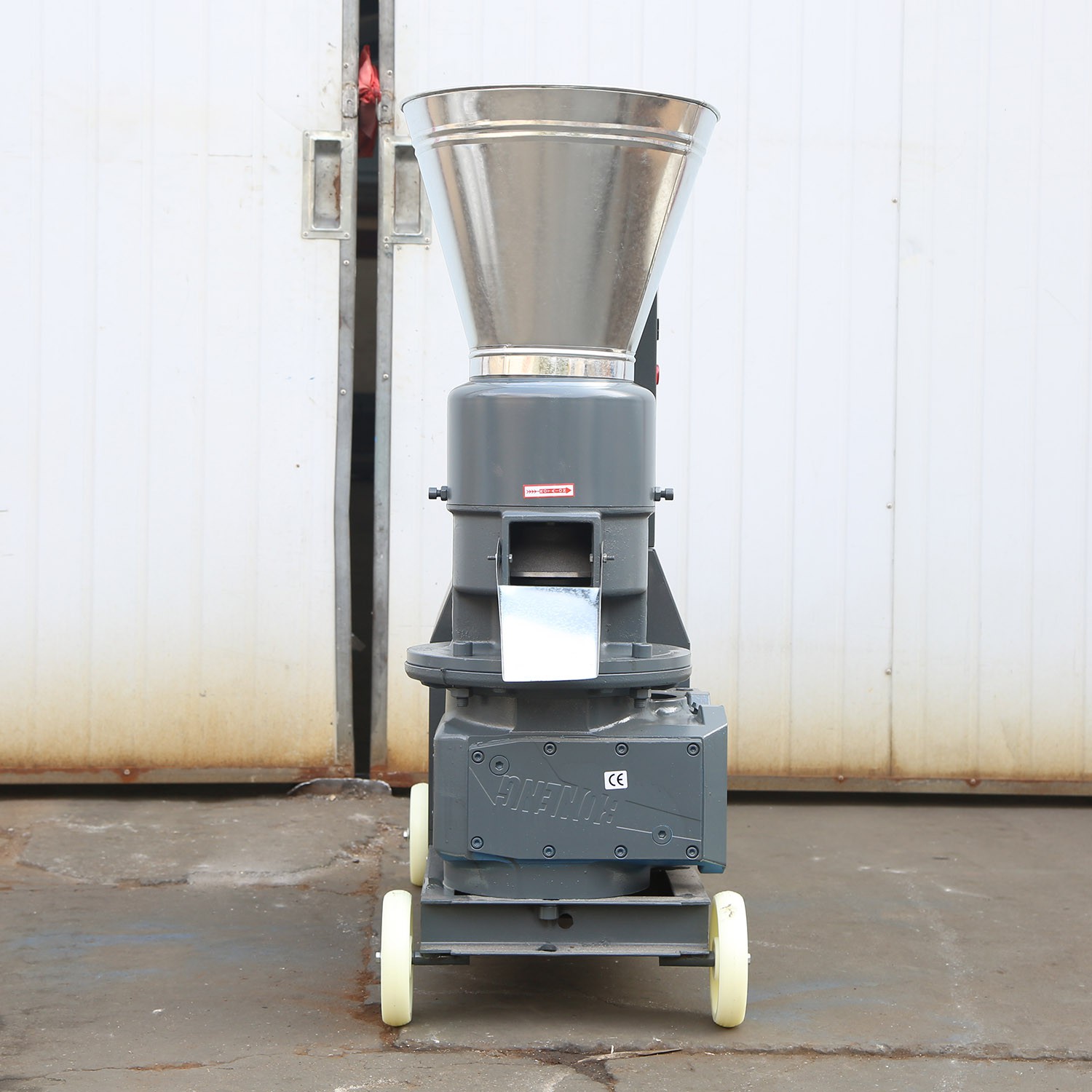

29

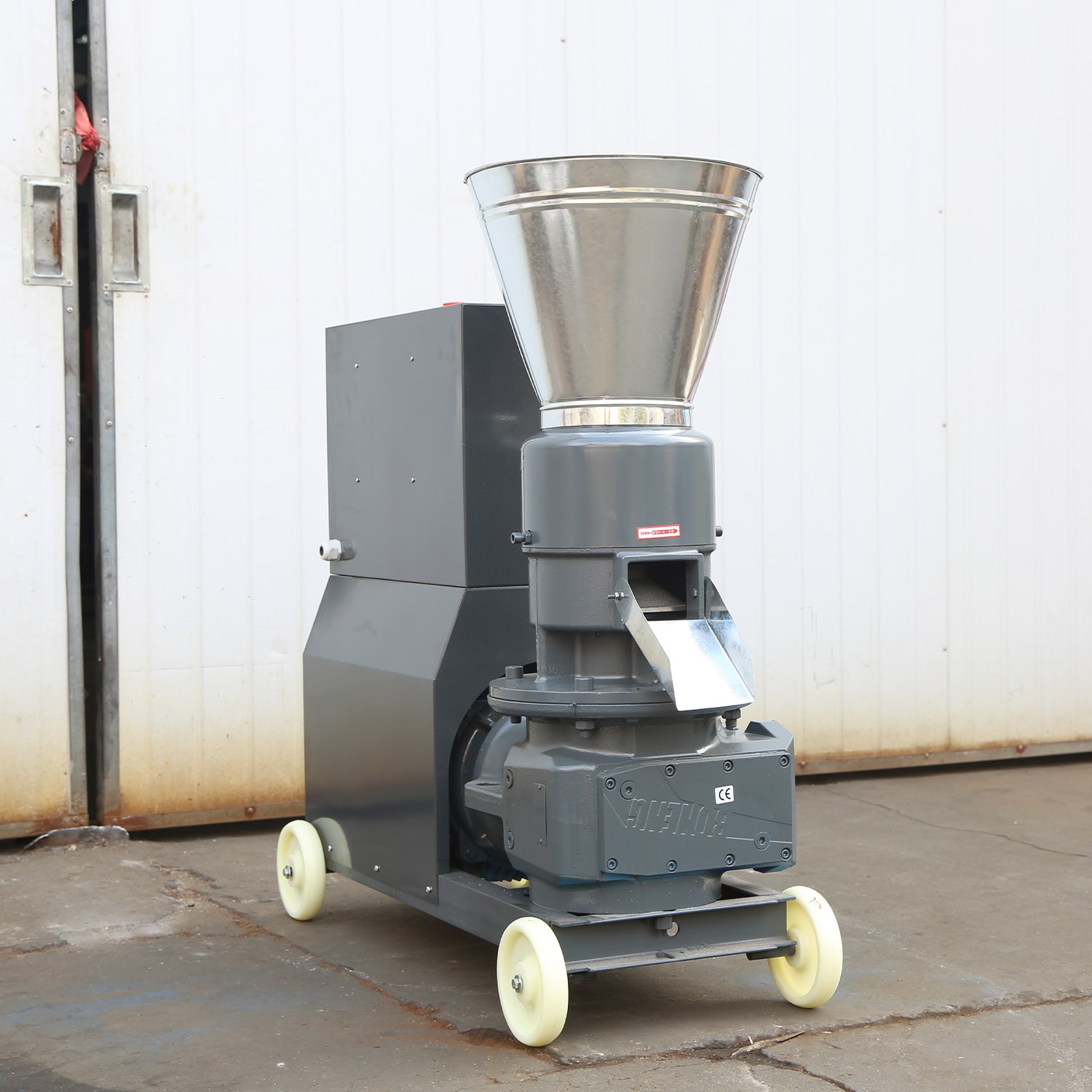

30

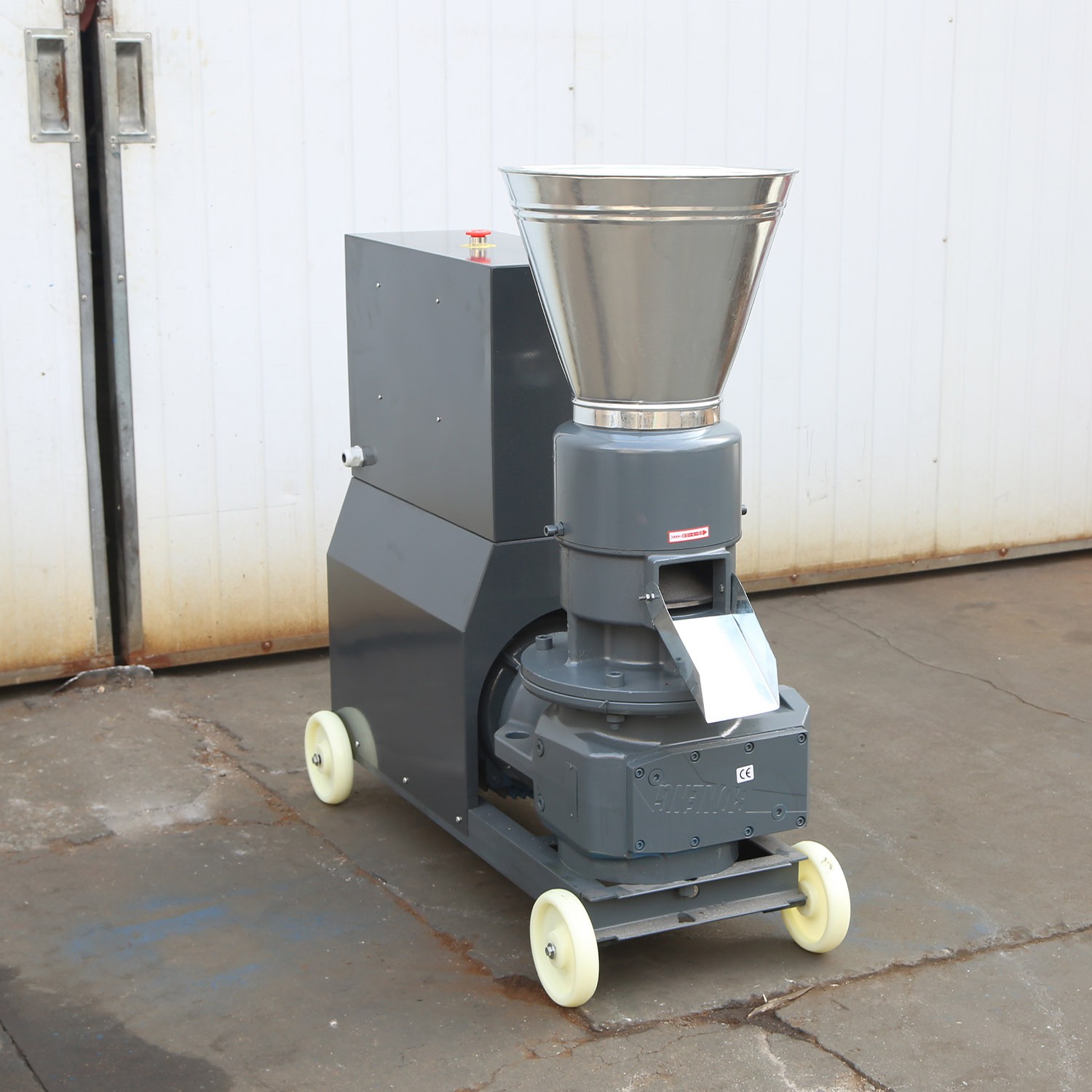

31

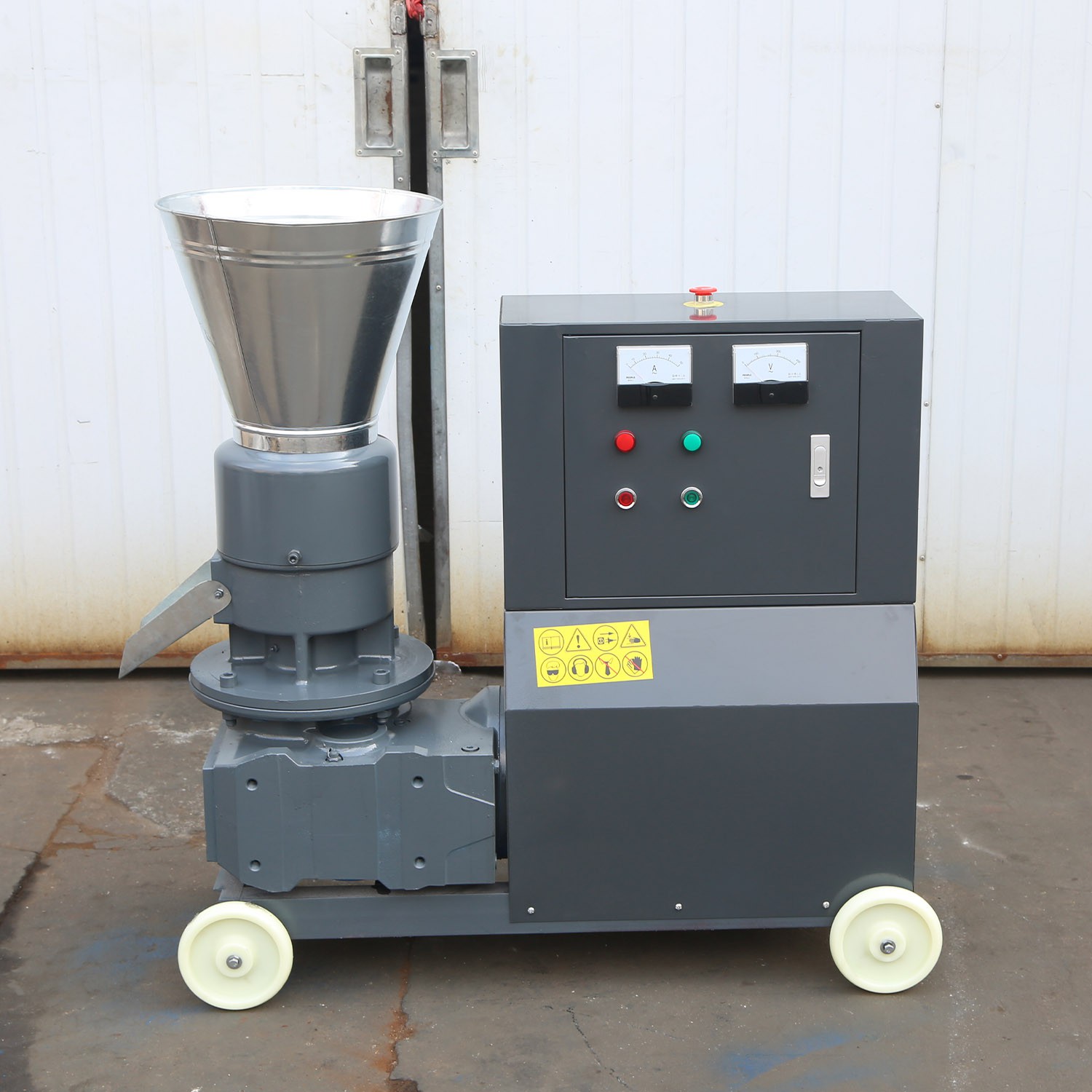

34

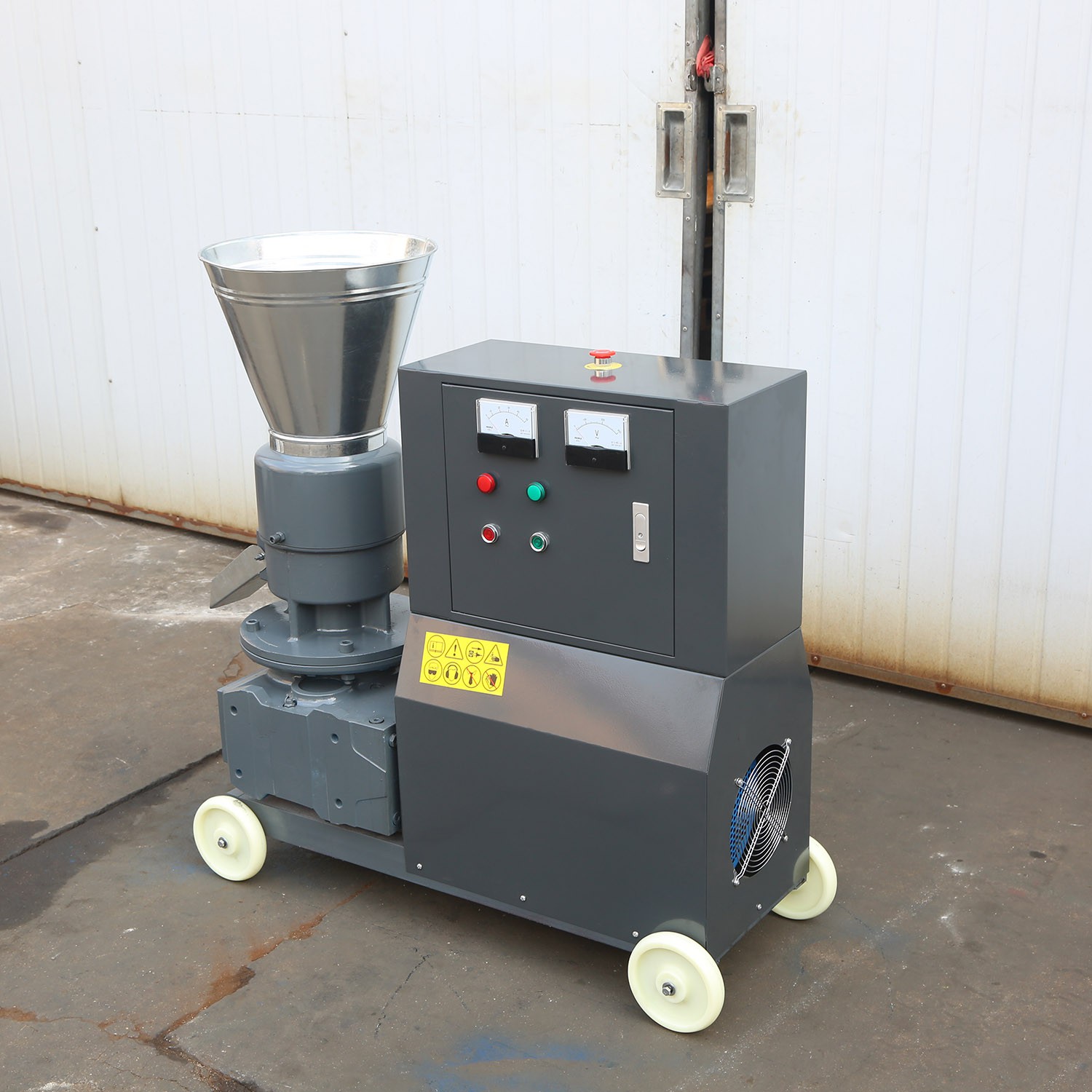

35

37













MKL225

1.This machine is flat die pellet machine with 7.5 kw electric motor.

2. It's a special design for press wood sawdust pellets.
3. The size of the final pellets: 4-10 mm, normally is 6 mm and 8 mm .
4. Moisture content of the raw materials: 12%-20%.
5. Sawdust Wood Capacity: 100-200kg/h



raw materail-1

Main Features

Name: Die
Brand: chengda
Original: China, Shandong
We have several diameter for your choose, and the size can be customized according to your requirements. The raw materials also made of high quality wear-resisting alloy steel.high quality alloy steel material, you can choose 2.5 mm,3 mm,4 mm,5 mm,6 mm,8 mm,10 mm according to your demand.



wood pellets-3















7.5kw 380V(or as requirements) 3 phase

200-300kg/h output
